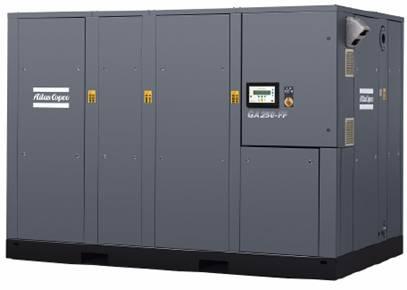

Atlas Copo Stationary Compressor
GA 200-500 (VSD): Oil-injected rotary screw compressors, 200-500 kW / 268-670 hp.
Product Information
Atlas Copco’s GA 200-500 (VSD) oil-injected rotary screw
compressors are designed and built to provide the maximum free air
delivery at the lowest energy costs. The robust design ensures your
process will function continuously even in the harshest conditions such
as temperatures up to 46°C/115°F.
Customer benefits
High reliability– Our GA 200-500 (VSD) compressors
incorporate a superior oil-injected screw element based on innovative
asymmetric rotor profiles and a high-quality drive system. All
components are selected to ensure a long and trouble-free life of your
compressor at the lowest operating cost.
Reduced energy costs– The GA Series’ superior screw elements
are designed to give the optimum combination of maximum free air
delivery for low energy consumption. The state-of-the-art compressor
element is powered by Efficiency 1 class/NEMA EPAct electric motors,
contributing to maximum compressor package efficiency. Beside this, the
GA 315 VSD can offer additional energy savings of on average 35% by
automatically adjusting the motor speed to the air demand.
Integrated air treatment– The GA Full Feature with highly
energy-efficient integrated refrigerant dryer and air filter ensures the
continuous supply of clean and dry air to extend the life of equipment,
enhance system reliability and avoid costly downtime and production
delays.
Advanced control monitoring– To maximize efficiency and
reliability, the Elektronikon® controls the main drive motor and
regulates system pressure within a predefined and narrow pressure band.
The Elektronikon® controller can be adapted to your specific needs with
extra sensors, digital contacts, fieldbus, Internet and SMS
communication functions. In combination with the ES multiple compressor
controller, the operation of your complete compressor room is optimized.

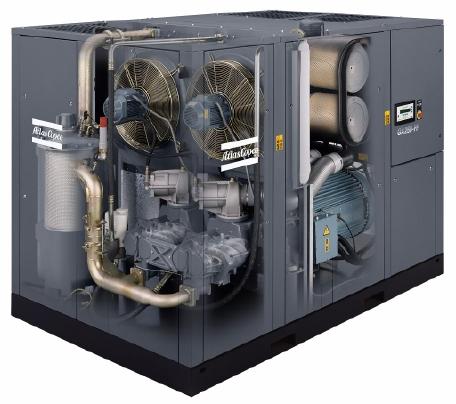

Easy installation– The integrated design includes internal
piping, coolers, motor, lubrication and control system: all supplied as a
ready-to-use package. Installation is fault-free and commissioning time
is low. Simply plug and run.
Technical Data
|
Technical Specifications
|
|
|
Capacity FAD (l/s)
|
211 - 1518 l/s
|
|
Capacity FAD (m³/h, cfm)
|
756 - 5472 m³/h
|
|
Installed motor power
|
185 - 522 kW
|
|
Working pressure
|
7.15 - 13.8 bar(e)
|
