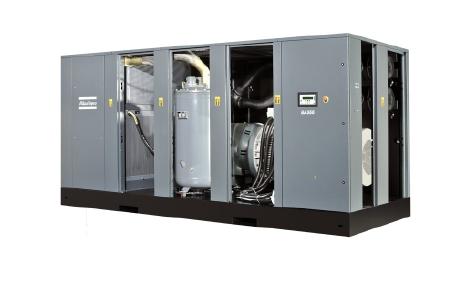

Atlas Copo Stationary Compressor
GA 315-355: Oil-injected Screw Compressor, 315-355 kW / 422-476 hp
Product Information
Reliability--
GA compressors use the new-generation state of the art patented oil
injected rotary screws. This robust design ensures long-term reliable
operation of the compressor at the lowest operation cost, and high
efficiency even in the harshest conditions.
Energy-saving and high efficiency--
Atlas Copco has been committed to improving product performance. The
superior screw element provides the optimum combination of maximum free
air delivery and low energy consumption. The state of the art compressor
elements is powered by high efficiency motors contributing to maximum
package efficiency.
Micro-oil air--
GA compressors are equipped with high- efficiency air – oil separators
and filter elements with a service life reaching over 8000 hours. Its
high-efficiency separation ensures minimum oil consumption and high
quality compressed air.
Advanced control and monitoring--
In order to maximize efficiency and reliability, Elektronikon® is
provided to control the main drive motor and limit the system pressure
under the small pre-set pressure range. It offers a great variety of
features that lower energy costs reduce maintenance time and costs and
limit stress on the entire compressed air system. Other features also
include easy extension such as extra sensor, digital contact, site bus,
Internet and SMS communication function, Elektronikon® Controller can
adapt to any specific customer demand. When it is used together with ES
multiple compressor controllers, operation of the whole compressor room
can be optimized.
Technical Data
|
Capacity FAD (l/s)
|
773 - 1003 l/s
|
|
Capacity FAD (m³/h, cfm)
|
2782.8 - 3610.8 m³/h
|
|
Installed motor power
|
315 - 355 kW
|
|
Working pressure
|
7.5 - 13 bar(e)
|
